Description

SPECIFICATIONS

Brand Name: HUNSN

Memory Capacity: ≤ 128MB

Hard Drive Capacity: ≤ 40GB

Model Number: Panel PC APW30

Processor Model: J6412

Use: Commercial

Origin: Mainland China

Type: Mini Desktop

Processor Main Frequency: 2.58 GHz

Graphics Card Type: Integrated Card

Certification: CE

Certification: RoHS

Processor Brand: Intel

Type: MINI PC

Screen Size: 21.5 Inch TFT Industrial Panel PC

All in one Type: 10-Point Projected Capacitive Touch Screen

PC Chassis: Aluminum Industrial Touch PC

Design: Fanless all in one panel Touch PC

HUNSN APW29 Feature: Front LED Panel IP65

BIOS Function: Diskless Start, Wake-Up on Lan

Various interfaces: 3COM+HDMI+2LAN+4USB

Human Interface Input: Touch screen

System Support: Windows 11 pro/Linux Ubuntu

Backlight Life: 30,000 hours (min.)

About this item

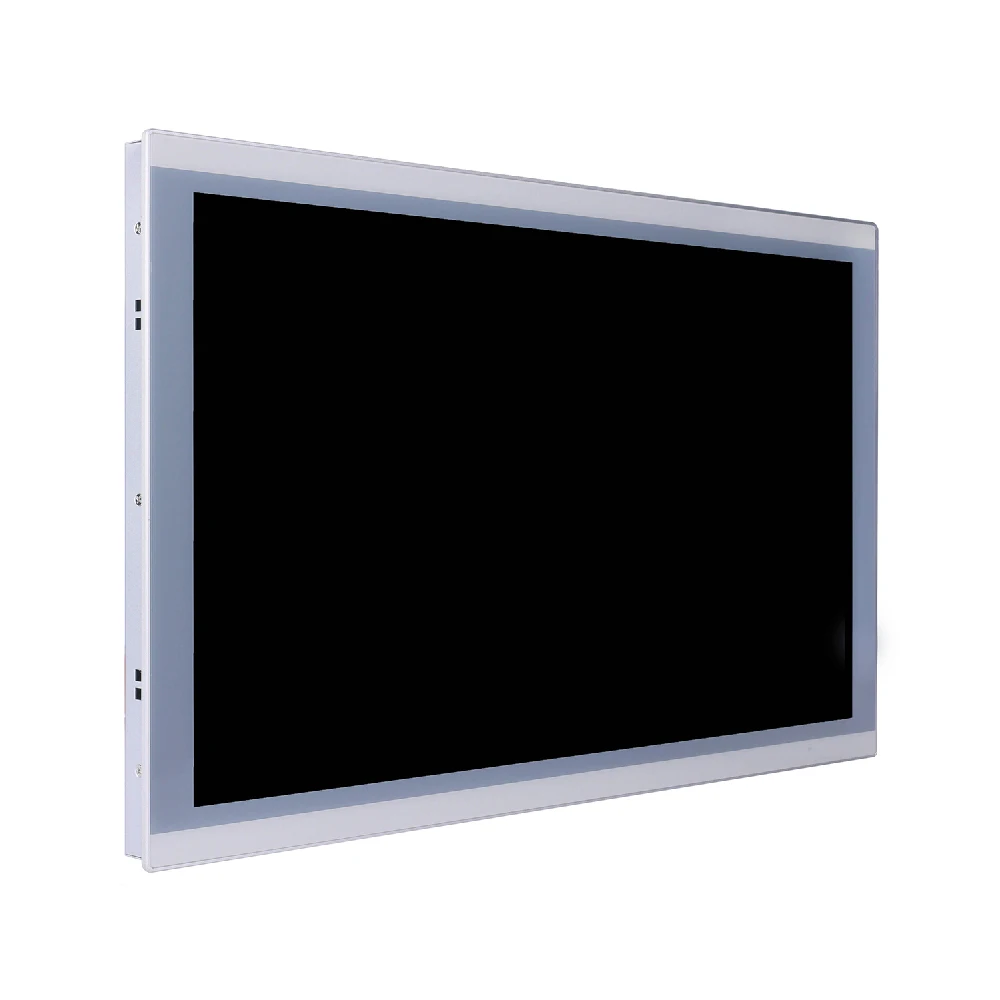

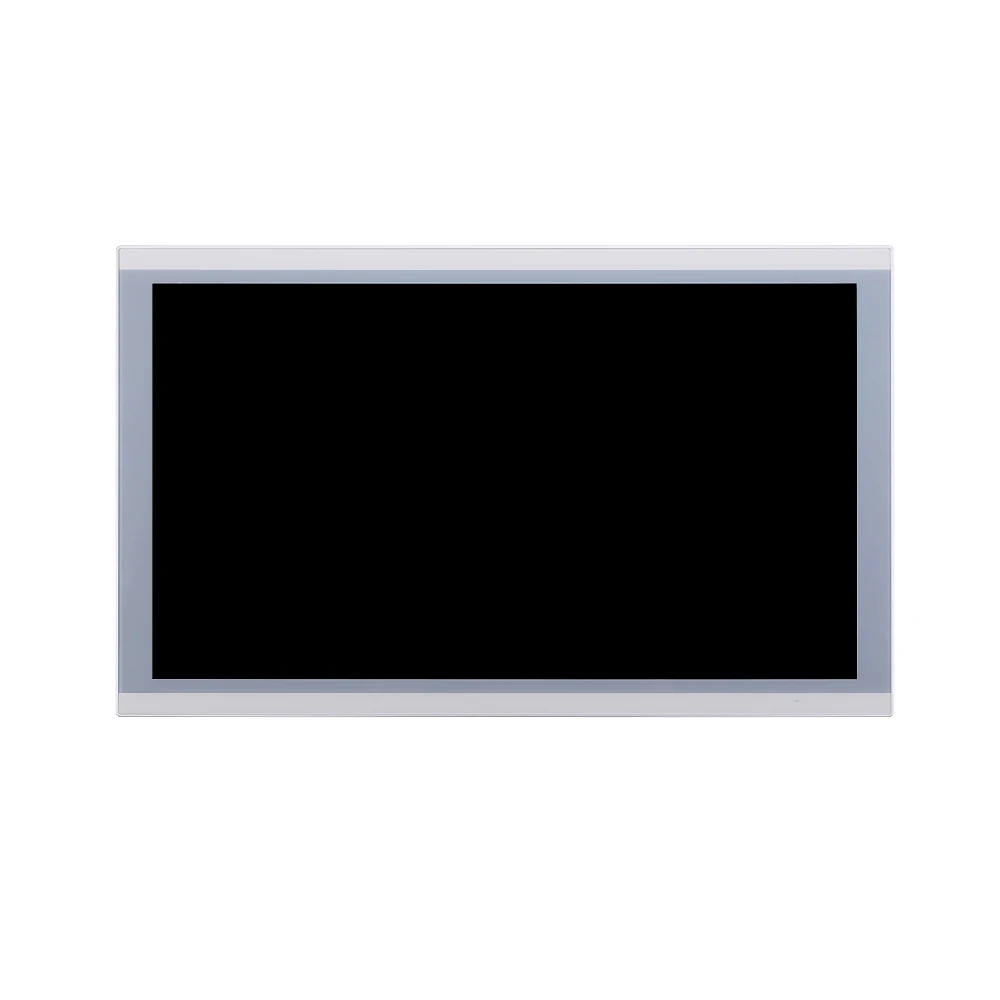

• 21.5 inch tft led industrial grade touch panel pc, front panel protection IP65, 10-point projected capacitive touch screen, typical 1920 x 1080 resolution, powered by intel celeron quad core j6412 processor, applicable to a wide range of industrial applications, 7 x 24 hours of stable work

• Windows 11 pro (64 bit) installed, set up is effortless and it's ready to run straight out of the box

• Aluminum alloy fanless passive cooling design, silent solution that’s ultra energy-efficient

• HUNSN PW30 designed with 12v dc, 3 x com, hdmi, 4 x usb3.0, 2 x lan, audio, power_sw, industrial aesthetic design and reasonable interface layout, support automatically power on after power failure, with mounting embedded buckle kits

• Size at 527.8 x 321 x 54.5mm, 5.7kgs, 12v power supply, with power cord, all use a big brand memory and ssd/hdd with quality assurance, very powerful fanless all in one panel touch pc

Parameters of TFT LED IP65 Touch screen：

Model Number: HUNSN PW30
Panel: 21.5" TFT LED panel, front panel protection IP65
CPU: Intel Celeron Processor J6412 (1.5M Cache, up to 2.60 GHz)
Memory: 1 x SODIMM DDR4 3200MT/s, max. to 32GB RAM
Storage: 1 x M.2 2280 SATA SSD, 1 x 2.5" SATA SSD/HDD

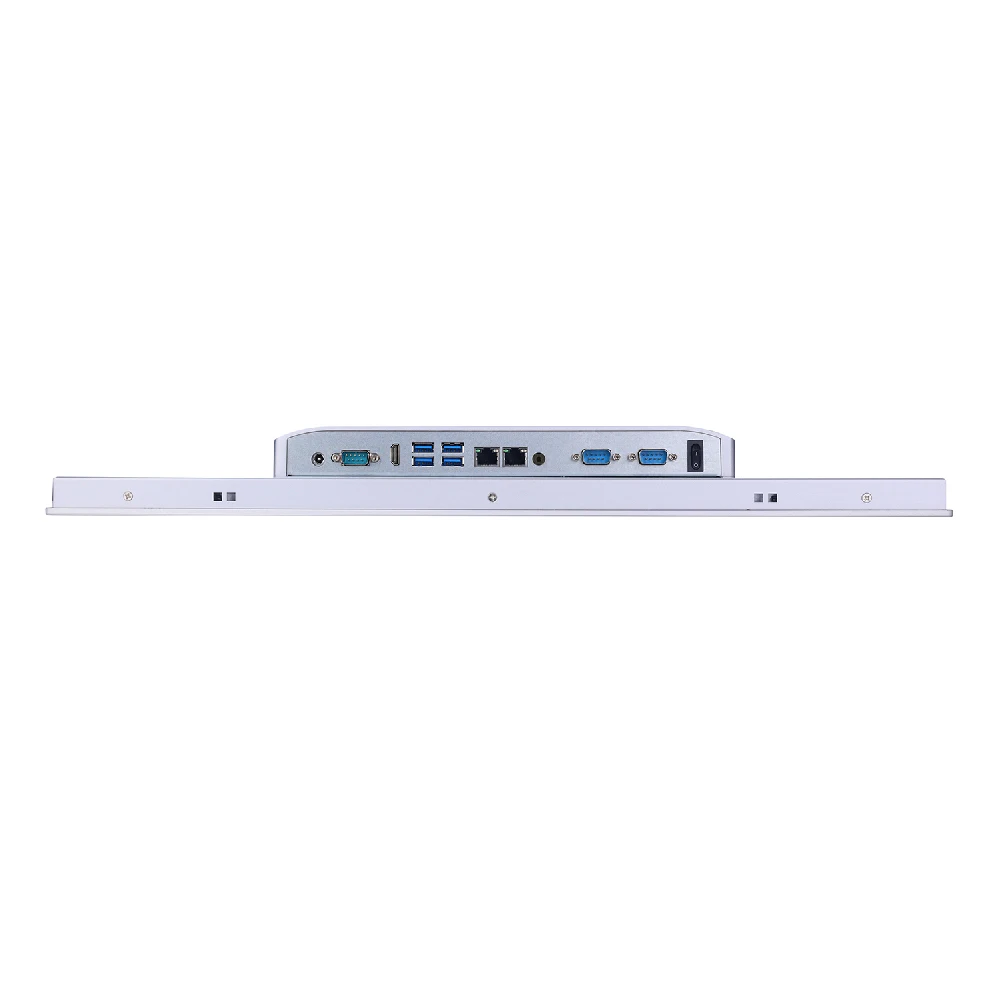

I/O: 12V DC, 3 x COM, HDMI, 4 x USB3.0, 2 x LAN, AUDIO, POWER_SW
Expansion: M.2 slot for WiFi, sim slot is a customized option
Watchdog Timer: 255
Cooling System: Aluminum alloy, fanless
Dimension: 527.8 x 321 x 54.5mm
Weight: 5.7kgs
Opening Hole: 522 x 315mm
Resolution: 1920 x 1080
Perspective: 80(L), 80(R), 80(T), 80(B)
Brightness: 250cd/m2
Contrast: 1000
Backlight Life: 30,000 hours (min.)
Touch Screen: 10-point projected capacitive touch screen
Transmittance: 86±5% at 550 nm wavelength
Durability (Touch Count): 200 million times

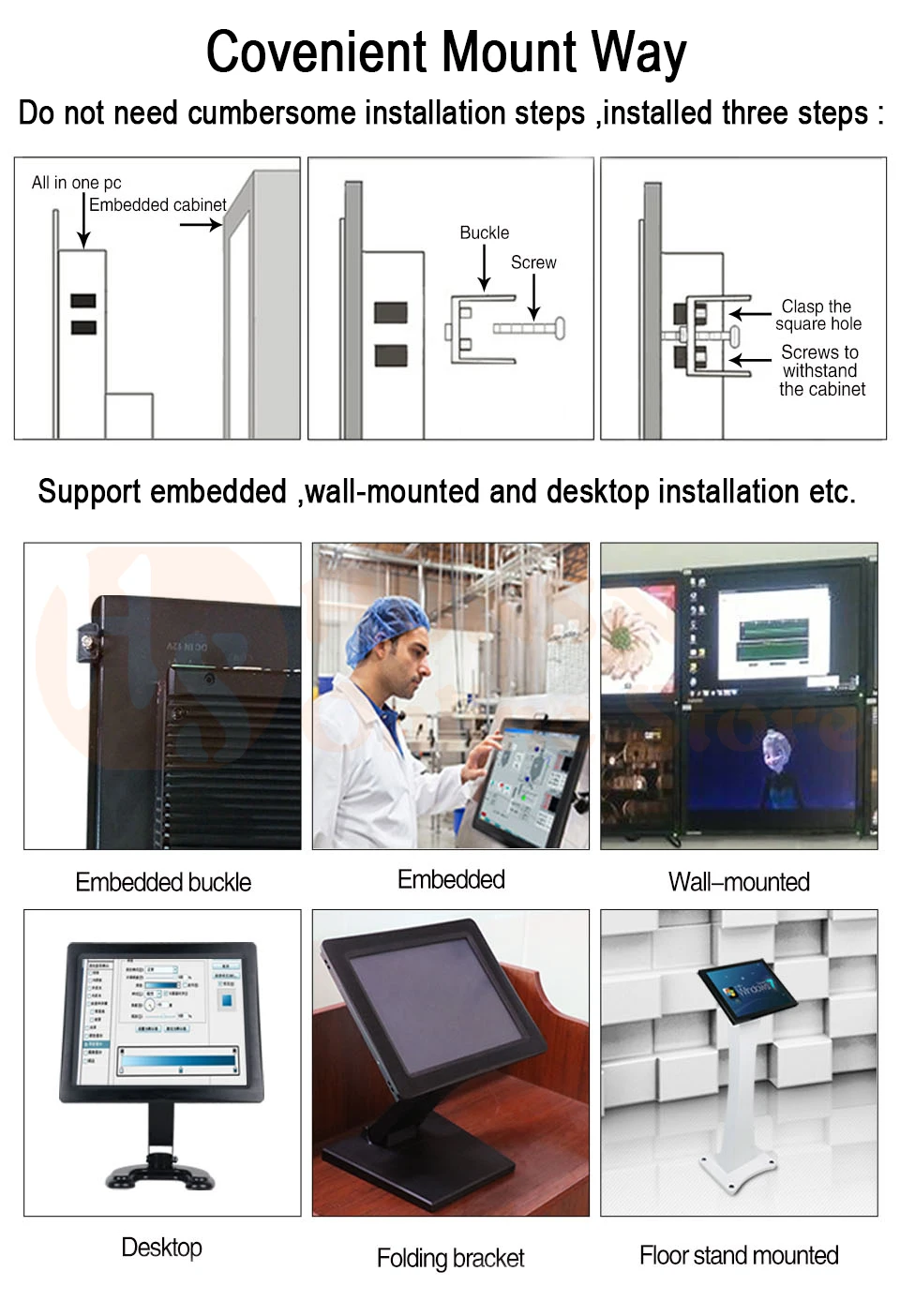

Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Operating Temperature: 0 ~ 50°C with SSD, 0 ~ 40°C with HDD
Storage Temperature: -20 ℃ ~ 60 ℃
Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation
EMC/Safety: CCC

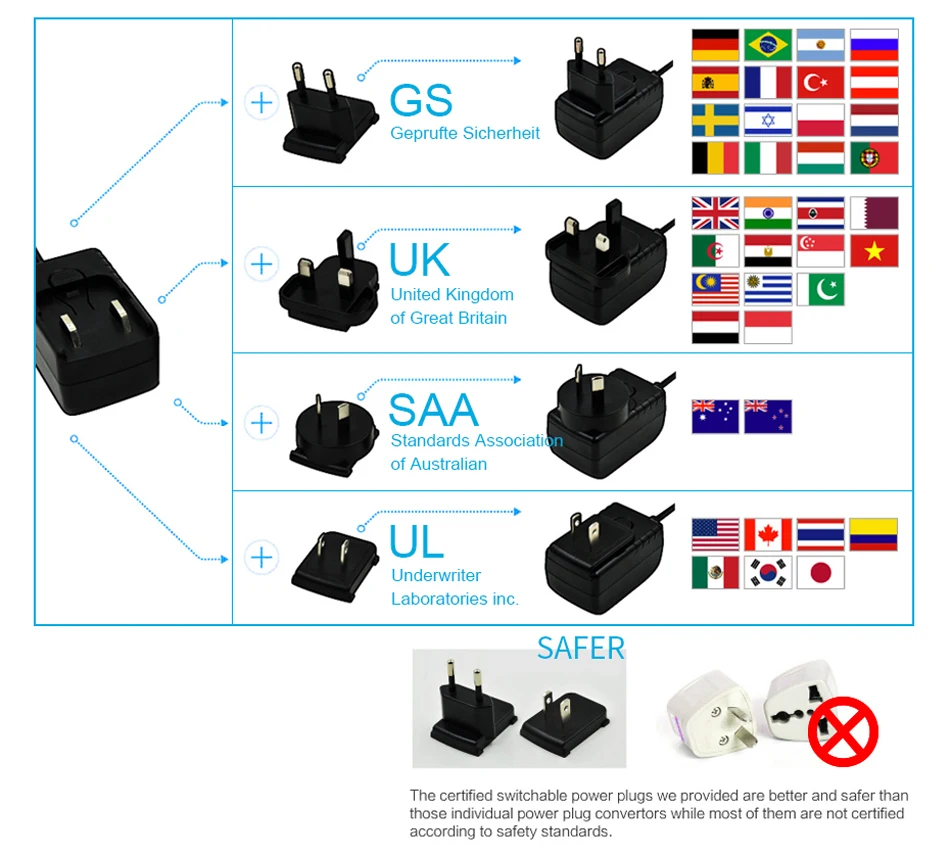

Power Supply: DC100-240V AC/50-60Hz, 12V
Packing List: HUNSN PW30 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
System Support: Windows 10/11, Linux Ubuntu etc
System Default Option: Windows 11 pro in English
ATTENTION: Other options, Linux or other system, other system language, do leave HUNSN message on the order, thank you
