Description
SPECIFICATIONS
Products Status: STOCK
Type: Panel PC
Package: Yes
Model Number: PPC-170C
Brand Name: Ling Jiang
CPU: Soldered onboard Intel Atom D25501.86GHz
Chipset: Intel atom 2550 + NM10
Memory: DDR3 667/880MHz SDRAM
Serial Ports: 6xCOM
USB Ports: 4 x USB
LAN: 2 x LAN RJ-45
Max. Resolution: 1024 x 1280
Operating Temp.: -25-75 Celsius degree
Storage Temp.: -40~80 Celsius degree
Sys: Support s Win7/8 XP /Linux
Specifications
1.Fanless and no cable design
2.3G/WIFI for optional
3.High quality&Exquisite shape&Fast delivery
IP65 Stainless Steel Fanless 17 inch Industrial High Brightness Panel PC with Intel atom d2550
Introduction
1.The Fanless industrial panel pc was made of brushed aluminum in beautiful shape,
no cable design is good at shockproof,and high performance at low power consumption,
can be used in hard environments.It can be made into optional wireless 3G/WIFI model .
2.With the shockproof,moisture-proof,waterproof and dustproof (meet the NEMA IP65
standard),high temperature resistant,multi-solt and easy to expand characteristics,so
it is widely used in industrial control,vehicle control,environmental control,Miliary control,Monitoring system,Network security,Digital signage,Date storge and other automationapplications.
3.With 17 inch resistive touch screen,brightness and contrast can be adjusted,and
also have standby energy saving mode.It with integrated industrial-grade low-power
embedded motherboard,support Windows 7 (Pre-install),Windows XP,Win7 system,
CF,HDD,SSD,multiple I/O interfaces.
System Specification
|
Model |
PPC-170C 482.6 x 354.8 x 51 mm |
|
screen size |
AUO 17 inch |
|
Display area |
380.3x 305mm |
|
Resolution |
1024 x 1280 |
|
Contrast |
700:1 Typ |
|
Screen colors |
262K/16.2M 6-bit/6-bit + FRC |
|
Display brightness |
450 cd/m2 |
|
Touch panel |
AMT Touch panel of resistance |
|
Chipest |
Intel Atom D2550+ NM10 |
|
CPU |
Intel ATOM D2550 1.86G |
|
RAM |
DDR3 2Gb MAX 8Gb |
|
SSD |
SSD 16GB |
|
System |
Windows XP/win7 |
|

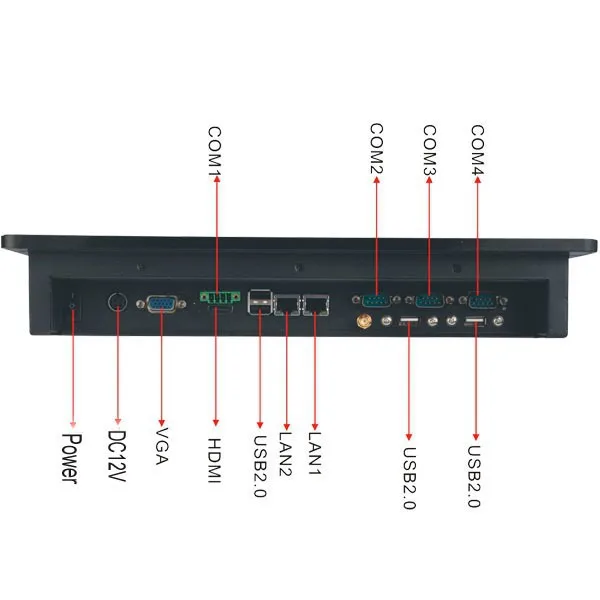

LAN |
2*RJ45 Intel RTL8111C 1000Mbps |
|
USB 2.0 |
4 |
|
COM(COM) |
6 (1×RS-232/422/485) |
|
VGA |
1 |
|
HDMI |
1 |
|
LPT |
1 (optional) |
|
Microphone Input/output |
1 (optional) |
|
Wireless 3G/WIFI |
1 (optional) |
|
Operating Humidity |
5 ~ 90% (non-Condensing) |
|
Operating Temp |
-25 ~ +75°C |
|
Storage Temp |
-40 ~ +80°C |
|
Color |
Black |
|
Power |
110V-240V AC |
|
Power adapter |
12V/5A DC |
|
Weight Warranty Certifications |
10 KG/set 12 month CE,FCC,ROHS |
product display
certi
a glance of the exhibition
Company profile
ShenZhen Ling Jiang Computer Technology CO.,LTD was established in 2002.We are specialized in Researching,Designing,Manufacturing,Assembing and exporting industrial computers.Our main lines of products are:Industrial Embedded PC;Industrial Panel PC;Industrial Motherboard of PC;Industrial Full Size Card;Firewall Machine and so on.
We are well recognized and accepted by a growing number of clients.We are always ready for new friends and new business opportunities.Looking forward to a higher level of involvement and the support of business partners to work together for a better tomorrow!
