Description
SPECIFICATIONS
Brand Name: Ling Jiang
Hign-concerned Chemical: None
Type: Embedded Computer
Origin: Mainland China
Package: Yes
Model Number: PPC-121P
Resolution: 800*600
Plug Type: EU Plug
Certification: CE
Certification: RoHS
Color: silver
Memory/RAM: Onboard 4GB ram,DDR3 Max 8Gb
Storage: SSD 64GB,Optional 128G/256Gb
CPU: Intel Celeron N2930 Quad Core
Touch Screen Size: 12.1″ touch panel pc
System: Win 7/Win 8/ Win 10/Linux
Lan: 2×10/100/1000Mbps RJ45 LAN
Serial Port: 4*COM Support RS485/RS422/RS232
USB: 3*USB 2.0 1*USB 3.0
Thermal Methods: Fanless
display: 1*VGA + 1* HDMI
Welcome To Shenzhen Ling Jiang Computer Technology Co., Ltd Store
Mob : +86-13641453873 (WhatsApp)
Tel: 86-755-23448870-8013
Skype: lingjiang8819
We are factory store.We also support wholesale price for large order.If you need.just contact with us.We can do for you.

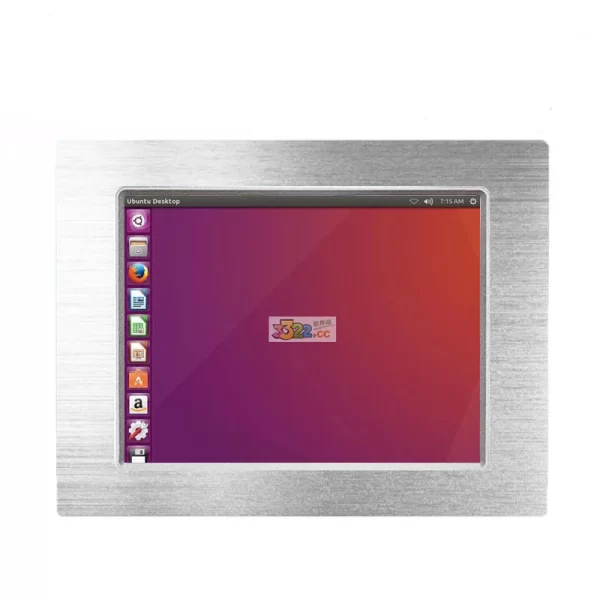

12.1 Inch Industrial Touch Screen Panel pc Windows 10 Tablet PC 8GB+128GB Intel N2930 processor
Product Description
|
Features |
|
|
Model Name |
PPC-121P（Upgrade） |
|
Display |
|
|
Size |
12.1" |
|
Resolution |
800×600 |
|
Brightness |
300cd/m2 |
|
Contrast |
350：1 |
|
Touch Screen |
4-wire China resistive touch screen |
|
LCD screen |
industrial LCD display |
|
System |
|
|
CPU |
Intel Celeron N2930 Quad Core 2GHZ CPU Power Consumption 10W |
|
Chipset |
Intel Bay Trail SOC |
|
Memory |
RAM Onboard 4GB , DDR3 MAX 8Gb |
|
Storage |
SSD 64GB（Up to 64G/128G/256Gb） |
|
System |

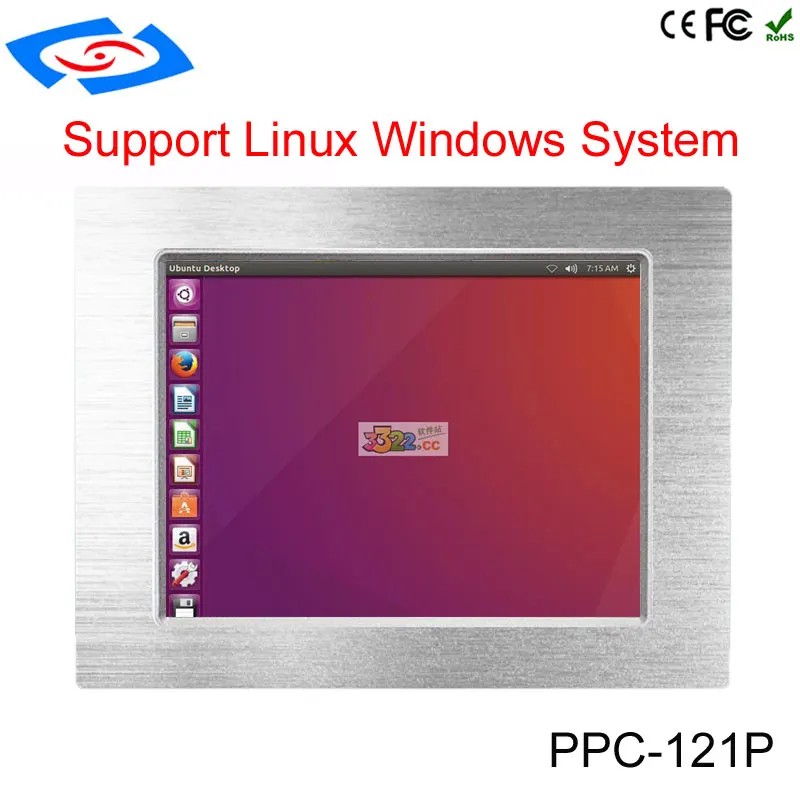

Win7/Linux/Win8/Win10 |
|

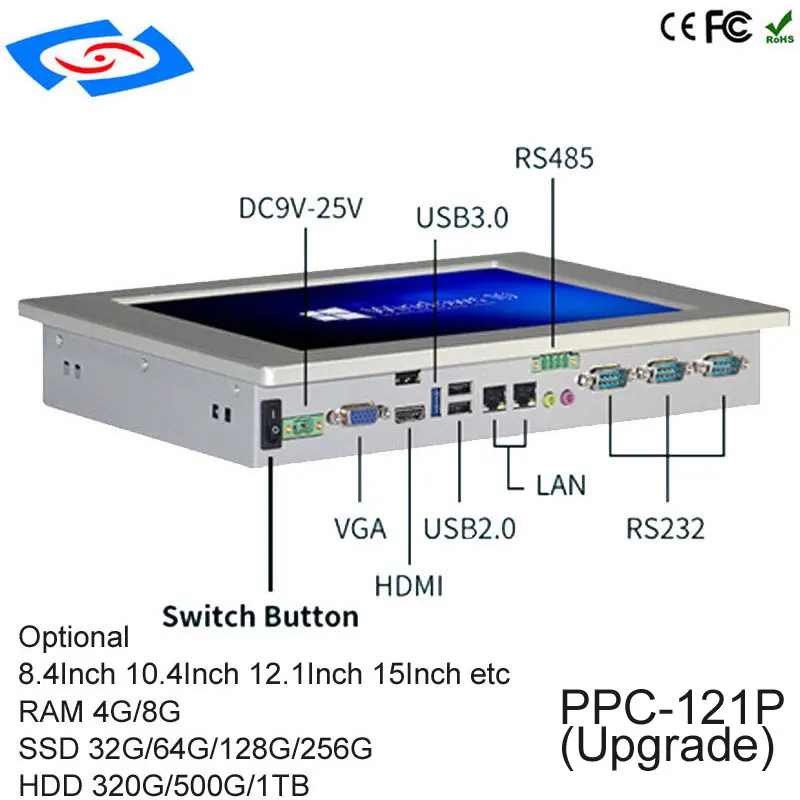

I/O |
|
|
Lan |
2×10/100/1000Mbps RJ LAN,Lan chip RTL8111E |
|
Serial Port |
COM1×RS485/RS422（default RS485 with Optical isolation ）, |
|
USB |
3×USB2.0 1×USB3.0 |
|
Display |
Integrated Intel HD Graphics，1×VGA、1×HDMI |
|
Audio |
Integrated ALC662, optional 1×MIC-in,1×Line-out/2W Built-in speaker |
|
Others |
1×GPIO（optional）, 1×LPT（optional）, 1×PS/2（optional） |
|
Patulous Option |

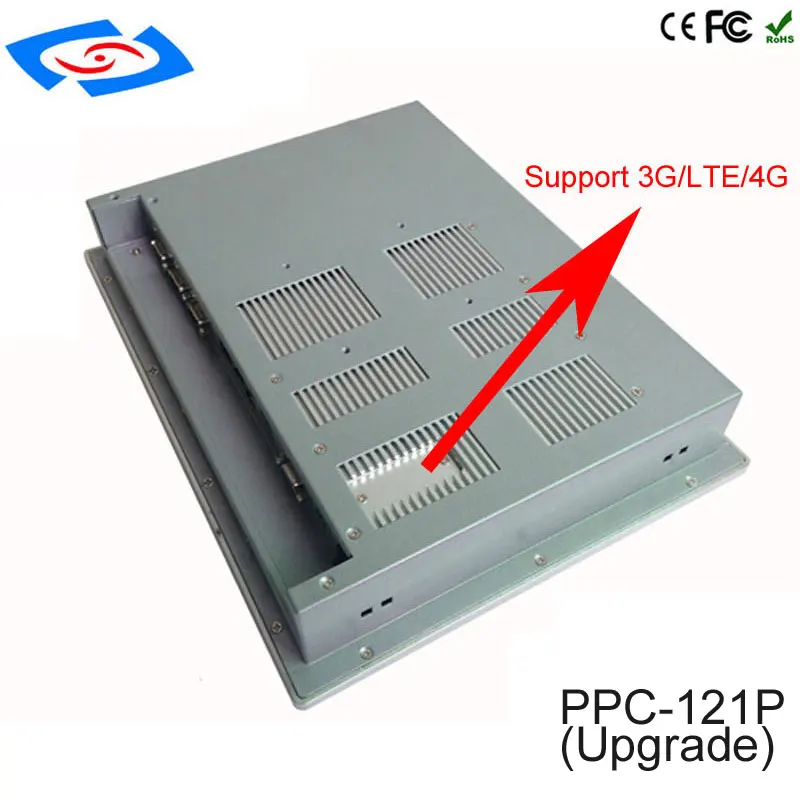

1×SIM，2×min-pcie(wifi/3G optional） |
|
Watchdog Timer |
1-255s，Programmable |
|
Thermal methods |
Fanless |
|
Consumption |
less than 15W |
|
Working Temp. |
-20℃-60℃，Humidity 5%-90%（Non-condensing） |
|
Storage Temp. |
-20℃-60℃，Humidity 5%-90%（Non-condensing） |
|
Power |
Wide voltage 9V～25V，12V/5A Power adapter |
|
Switch ON/OFF |
Switch |
|
Shell Material |
High-strength aluminum brushed pane;IP65；Spray painting |
|
Color |
Silver |
|
Net Weight |
3.95kg |
|
Installation |
Embedded mounted,VESA rack mounted |
|

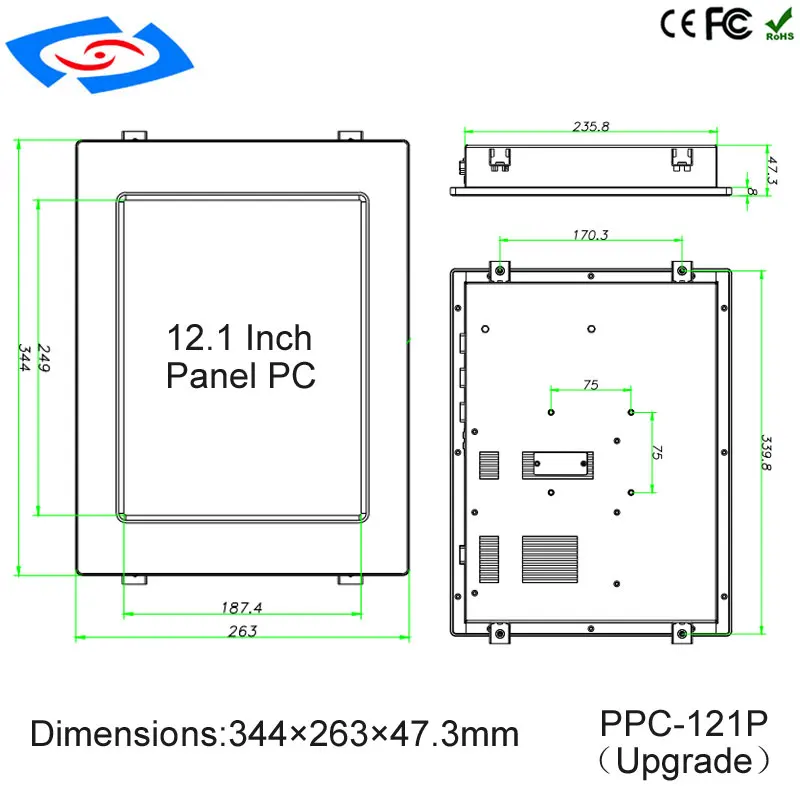

Dimensions(mm) |
344×263×47.3 |
|
Hole size（mm） |
318.4×235.8 |
|
Warranty |
|
|
Warranty |
12 months |
|
Order information |
|
|
Model Name |
PPC-121P（Upgrade） |
|
Standard |
Intel Celeron N2930 CPU Quad Core/RAM 4G/SSD 64G |
|
Accessories |

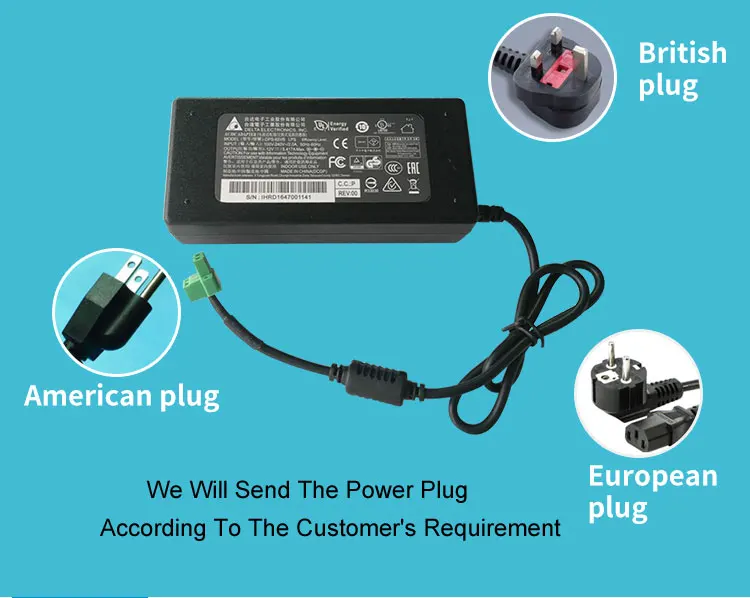

12V/5A Power Adapter，Power Line，4 Sets Embedded Install Button RS485 Sonnector |
|
Optional |
RAM 8G/SSD 64G/128G/256G/3G/WIFI |
Applicable scene
About packing:
1,Modular packaging,all Panel PC are in box,scientific packaging design, each part carefully protected to ensure safe arrival.
About feedback:
1,If you are satisfied with panel PCS,please leave a positive feedback to us. Thanks in advance
2,If you are not satisfied for any reason,please contact us before leaving feedback,we will work with you to help you solving any problem until you are satisfied.
